Heavy Duty Current Collectors are of fully Articulated Design.
This provides multi axis degree of movement thereby allowing compensation of machine motion tolerances and installation variation.
Spring Loaded unit provides positive pressure contact with conductor, thus ensures uninterrupted power transfer during motion.
Variety of designs for different applications and site conditions.

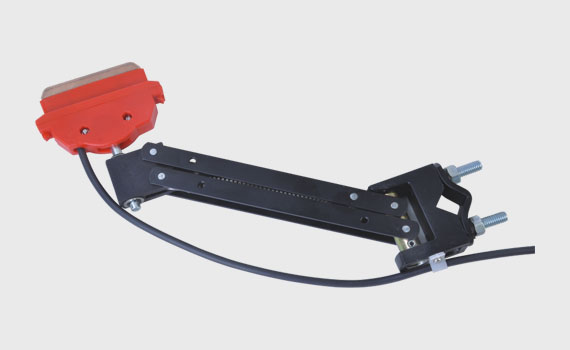

D Type Current Collector
60 Amp. to 125 Amp

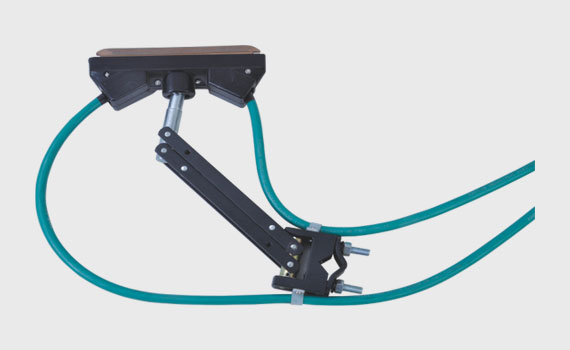

M Type Current Collector
160 Amp. to 400 Amp
|1||Current Collector Type||"D" Type||"M" Type|
|2||Currant Rating||125 Amp||250 amp|
|3||Collector Movement Horizontal Vertical||+260
|4||Mounting Bracket||19 sqmm bar||25 sqmm bar|
|5||Mounting Distance From Conductor Contact Surtace||127 MM||127 MM|
|6||Construction||1 Pole||1 Pole|
|7||Sintered Copper Shoe||125 Amp.||250 Amp.|
|10||Two Collector in Tandem to be used for Higher Currents & in Expansion Assemblies|
MAINTENANCE COST : No periodic maintenance is required. only consumable item is contact shoe.
