Cable Festooning System

C-Rails & Accessories

C-Rails & Accessories



  • Crane

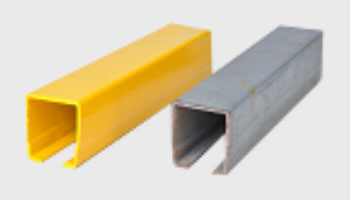

    C-Rail Bars

    Material : Galvanized Steel / Powder Coated
    Length : 4mtr.

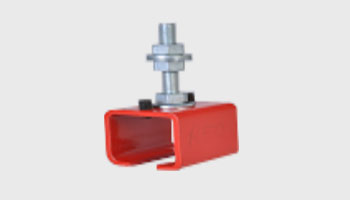

  • Track Support Bracket

    Track Support Bracket

    (1 piece)
    Material : MS Steel
    Max support spacing : 1mtr. (Recommended)

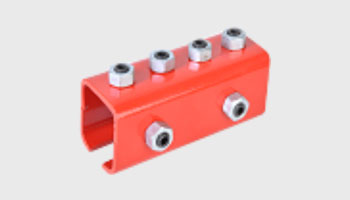

  • Track Coupler Bracket

    Track Coupler Bracket

    To join c-rails and suitable for supporting the track
    Material : MS Steel

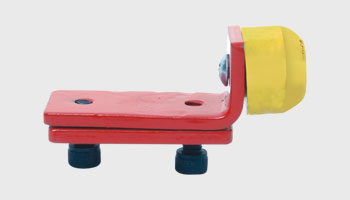

  • End Stop

    End Stop

    Material : MS Steel

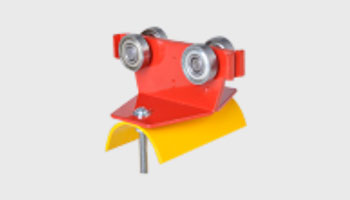

  • Flat Cable Trolley

    Flat Cable Trolley

    Material : MS Steel
    Type of roller : Steel Rollers or Ball Bearings.

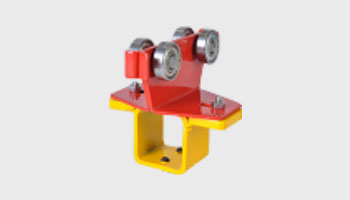

  • Towing Trolley

    Towing Trolley

    Material : MS Steel
    Type of roller : Steel Rollers or Ball Bearings.

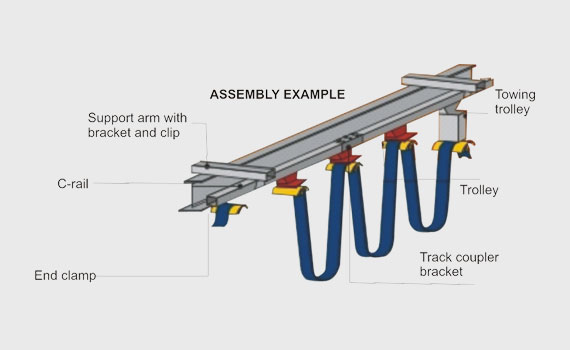

COMPONENTS

Profile : C Rail runway of the trolley 4 meter standard.
Hanger Clamp : Ensure the fastening of the `C' rail to the structure. To be placed every 1 meters in the ambush area every 1 meter.
Towing arm : To be placed in the hoist or crane to make the haul together with the towing trolley.
Track Coupler : To fit consecutive track sections.
End stop : Avoid the fallen down of the trolleys at the end of the line.
Towing trolley : It moves together with the device to be fed.
Cable trolley : It moves in the profile along the track bearing the cables
